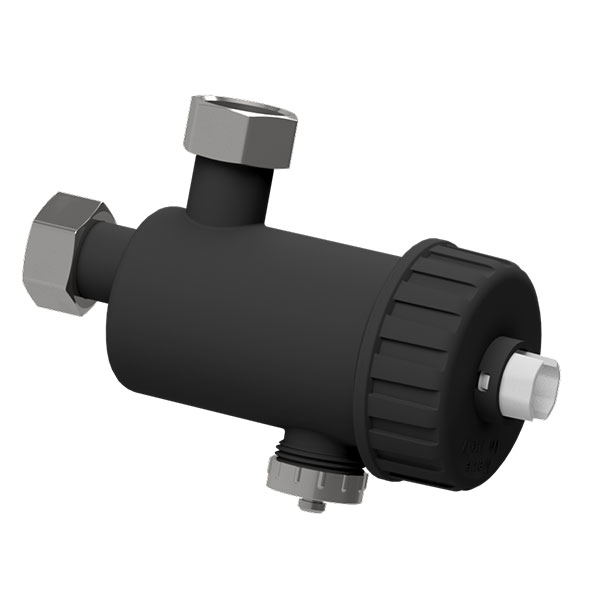

T-MAG MINI V
Compact magnetic and mechanical filter with semi-automatic cleaning in backwashing. for vertical installation

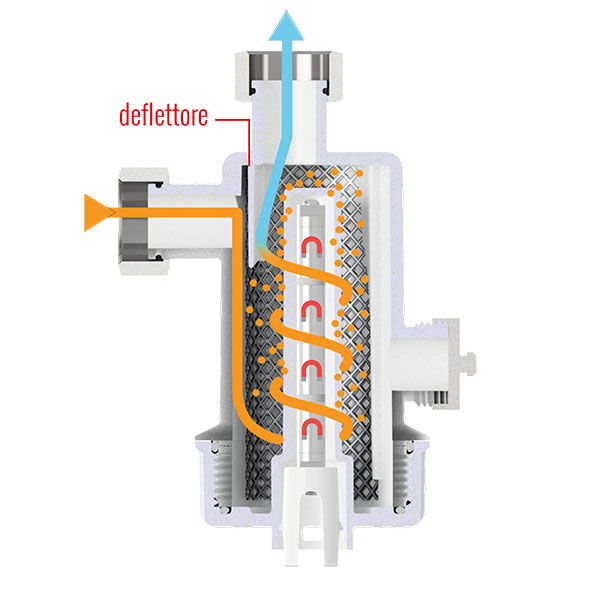

T-MAG MINI V filter is ideal for installation under wall hung boilers and it is equipped with a power neodymium magnet of 7.000 GAUSS, which captures and retains any iron oxide and magnetite circulating in the heating systems. The 450 micron stainless steel filtering mesh inside the filter can also collect and block a big quantity of non-magnetic particles, such as limescale, aluminium oxides, bacterial colonies and welding residues.

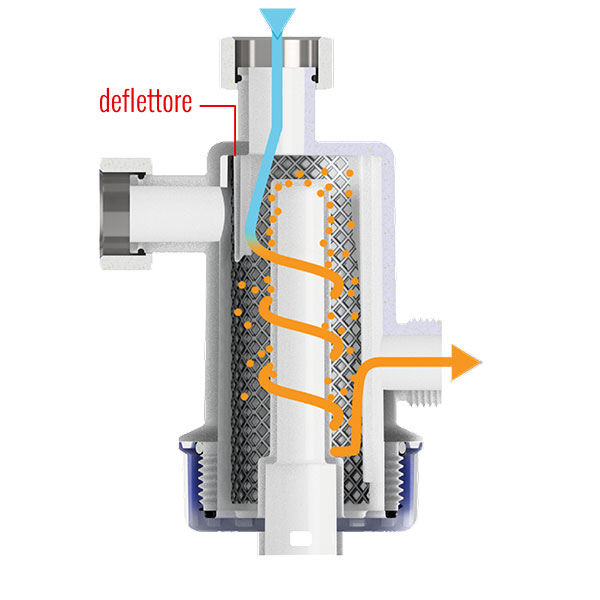

T-MAG MINI V allows the semi-automatic cleaning in backwashing thanks to its magnet easy to remove, its mesh open on the bottom and its bottom draining system, without having to open the filter and using only tap water.

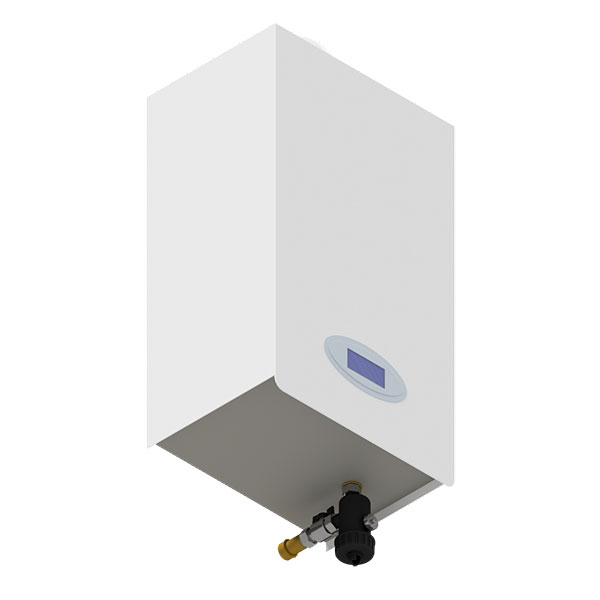

The compact filter dimensions are suitable for restricted spaces, even under wall hung boilers, where spaces are reduced to a minimum.
T-MAG MINI V maximum efficiency as magnetic filter system for iron oxides removal is performed by adding the inhibitor PROTECT 1 into the system.
In systems where there is a low quantity of metal oxides, it is suggested to use the inhibitor and sludge removal PROTECT 13, a product suitable to avoid corrosive and encrusting phenomena and to clean the system with ZERO DRAIN technology (without draining or rinsing the water from the system).
• Power Neodymium magnet of 7.000 GAUSS
• Filtering basket of 120 cc with 450 micron mesh
• Filter body with ¾ ”connections
• Bottom draining system • Maximum pressure: 3 bar
• Maximum temperature: 80° C
• Maximum flow rate: 30 l/minute
• Filtering volume: 160 cc
• Filter material: P.O.M.
• Avoid energy wastage
• DIMENSIONING: systems from 100-150 l of water (100 – 150 m²)
• T-MAG MINI V
